X4703-H 2.5mm Pitch 180° SMT Wire To Board Connector 2P To 16P Receptacle

Name: X4703H 25mm Pitch 180 SMT Wire To Board Connector 2P To 16P Receptacle
Brand: Alinta
Price: 1 USD

Quality X4703-H 2.5mm Pitch 180° SMT Wire To Board Connector 2P To 16P Receptacle wholesale

Brand Name : Alinta

Model Number : AL-X4703-H

Certification : RoHS

Place of Origin : China

MOQ : 1000

Price : negotiable

Payment Terms : T/T, L/C

Supply Ability : 25kk per month

Delivery Time : 5~8 working days

Packaging Details : Tape & Reel

Product Name : Wafer, Receptacle

Positions : 2~16P

Application : PCB

Housing : LCP, UL94V-0

Contact : Brass, sn-plated

Contact Now

Product Descriptiom

A wire-to-board connector is a type of electrical connector used to connect wires to a printed circuit board (PCB). It consists of two main components: the housing and the contacts. The housing is usually mounted on the PCB and contains slots or receptacles where the contacts are inserted. The contacts are typically crimped onto the wires and then inserted into the housing, creating a secure electrical connection between the wires and the PCB.

These connectors are commonly used in various electronic devices and applications where it's necessary to connect wires to a circuit board, such as in computer peripherals, automotive electronics, industrial machinery, and consumer electronics. They come in different sizes, configurations, and specifications to accommodate various wire gauges, current ratings, and environmental conditions.

X4703-H 2.5mm Pitch 180° SMT Wire To Board Connector 2P To 16P Receptacle

Alinta Wire-to-Board Connector Series

Discover reliable Wire-to-Board (WTB) connectors and cable assemblies from Alinta, offering pitch sizes ranging from 1.0mm to 6.35mm. Our connectors cater to diverse industries, including automotive, appliances, industrial, data & telecommunications, and consumer electronics.

Benefit from a wide array of advantages with our WTB connectors, making them an optimal choice for various applications. Enjoy the flexibility of customization options to tailor the connectors precisely to your requirements.

(8 pin image)

X4703-H 2.5mm Pitch 180° SMT Wire To Board Connector 2P To 16P Receptacle

Technical Parameter

Product Type Features	Category	Wire to Board
	Assembly Type	Wafer
	Pitch (mm)	2.5mm
	Product Series	AL-X4701-H

Electrical characteristics	Rated Voltage (V AC/DC)	250
	Rated Current (A AC/DC)	2
	Contact Resistance	≤30mΩ
	Insulation Resistance Withstand Voltage	≥1000MΩ 1000V AC/Minute

Configuration Features	Number of Rows	1
	Number of Positions	2~16

Shell characteristics	Color	Beige
	Housing Material Contact Material	LCP, UL94V-0 Brass, Sn-plated

Environmental Info	Operating Temperature Range (°C)	-20℃~85℃

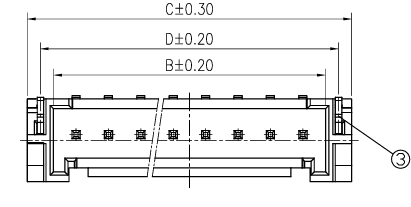

Dimension of X4703-H 2.5mm pitch SMT Verticle Type

X4703-H 2.5mm Pitch 180° SMT Wire To Board Connector 2P To 16P Receptacle

Data above for reference only.

For a dependable and customizable WTB connector solution, reach out to Alinta today! Let us assist you in finding the perfect solution for your needs.
